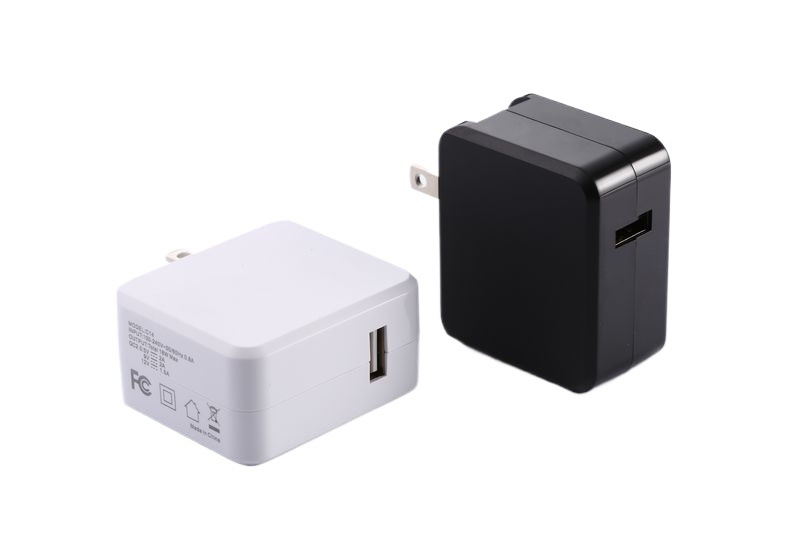

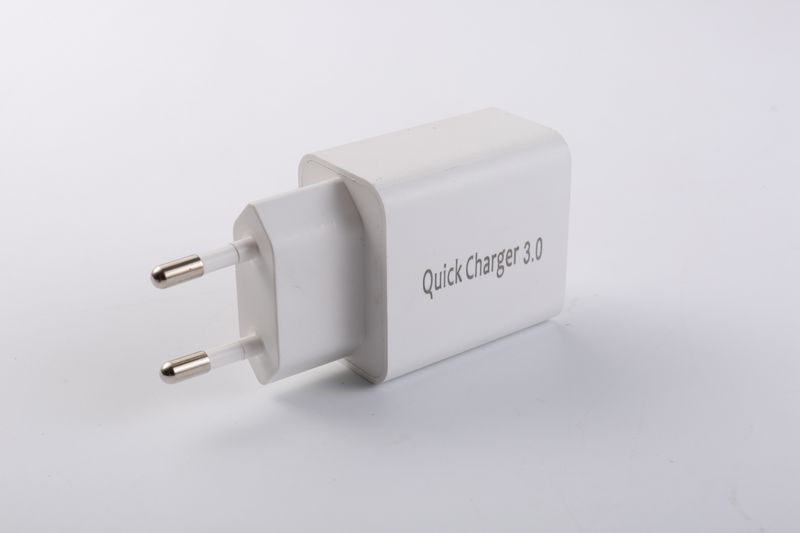

USB Quick Charge 3.0 For cell phone KC RCM认证 快充头 QC3.0
¥22.50
| 数量（Pcs） | 优惠 (%) | 价格（人民币） |
|---|---|---|
| 1 - 999 | — | ¥22.50 |
| 1,000 - 4,999 | — | ¥22.50 |
| 5,000 - 9,999 | 2.22 % | ¥22.00 |
| 10,000+ | 11.11 % | ¥20.00 |
商品详情
商品属性
| 品牌 | JHR | 产品类型 | 高频开关电源 |
|---|---|---|---|
| 产品认证 | ce | 外形尺寸 | 47*36.5*19cm |
包装信息
商品件重尺
| 重量(g) |
|---|
| 50 |
QC 3.0
3 Years Warranty
Energy Efficiency Level VI
CE Approvals
Optional Black Color
Class II Construction
Min. Order 1000 Pieces
Lead Time 20-25 working days
|
OUTPUT SPECIFICATIONS |
ENVIRONMENTAL SPECIFICATIONS |
||||||
|
Output Voltage |
5V / 9V / 12V |
Operating Temperature |
10°C~40°C |
||||
|
Output Current |
3A / 2A / 1. |
Cooling |
Convection |
||||
|
Output Power |
18W |
Temperature Coefficient |
0.05%/°C |
||||
|
Short Circuit Protection |
Automatic Recovery |
Humidity |
5~95%RH(non-condensing) |
||||
|
Over-Current Protection |
Automatic Recovery |
Storage Temperature |
-20°C~+80%°C |
||||
|
Ripple and Noise |
100mVp-p max |
PHYSICAL SPECIFICATIONS |
|||||
|
Turn On Time |
20-30mS normal |
Physical Specifications |
43mm * 39mm * 27mm |
||||
|
Line Regulation |
1% max |
SAFETIES STANDARD |
|||||
|
Output Regulation |
±5% |
Safeties Standard |
60950 |
||||
|
TYPICAL MODEL LIST |
|||||||
|
I/P Voltage |
Typical model |
Output |
Function |
